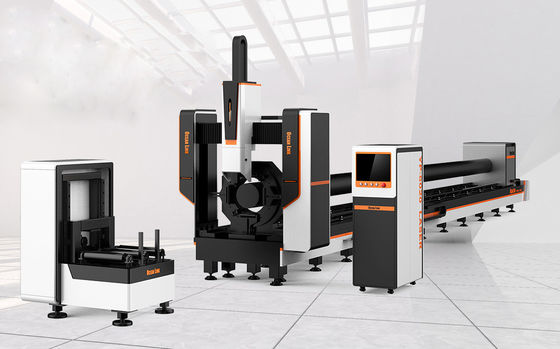

6KW/12KW CNC Fiber Laser Cutting Machine for Tubes,Beams&Other Irregular Steel

  • 6KW/12KW CNC Fiber Laser Cutting Machine for Tubes,Beams&Other Irregular Steel
Lugar de origen Porcelana
Nombre de la marca Perfect
Número de modelo El LTC-5012
Cantidad de orden mínima 1
Detalles de empaquetado Estándar
Tiempo de entrega 10 días
Condiciones de pago LC, T/T
Capacidad de la fuente 20/month

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Garantía 1 año Precisión del posicionamiento 0,05 mm
Método de enfriamiento Enfriamiento de agua Modelo El LTC-3612
Sistema de control CNC Velocidad móvil máxima 40m/min
Fuente de alimentación 380V 50Hz Compatibilidad de material Metal, madera, plástico
Espesor de corte Hasta 25 mm Software CAD/CAM
Área de corte Diámetro 500m m Método de corte Lasers/plasma
Deja un mensaje
Descripción de producto
6KW/12KW CNC Fiber Laser Cutting Machine for Round and Square Tubes,H & I Beams

Model LTC-5012

Product Description:

This machine is used for cutting metal round and square tubes,H & I Beams, angle steel, etc. It adopts a 19-inch high-resolution LCD color display, which can display cutting graphics and cutting running tracks. Cutting programs can be edited manually. It adopts five-axis perfect cutting, which can cut round pipe, square pipe, channel steel and angle steel. In addition, it supports functions such as pause, forward, backward, and speed regulation during processing. It can store 200G files and can be used at will. It is driven by high-efficiency servo motor, with fast speed, high efficiency, high precision and stable operation. High-flexible shielded wire is used to truly resist high-frequency interference. It is suitable for various fiber optic models. The movable beam can save tailings. The front chuck is equipped with A set of intelligent follow-up splicing devices to facilitate the For long material processing requirements, there is a set of intelligent follow-up material support systems in between, so as to avoid Buyer’s long material sagging and affecting the cutting accuracy.

Laser Cutting Machine Parameter:



Specification Of Cutting Steel Pipe

Cutting material Round pipe,square tube,channel steel,angle steel,H beam
Round pipe 500mm
Square tube Diagonal max 500
Channel steel Diagonal max 500
Angle steel Diagonal max 500

Cutting thickness Max:25mm often cut:less than 15mm carbon steel
Cutting pipe length 12000mm
Machine length 14000mm
Need space 15000mm
Machine weight 9000KGS
Positioning accuracy 0.05-0.1mm
Cutting accuracy 0.2-0.6mm
