20KW CNC H Beam,Plate,Tubes Laser Cutting Machine

  • 20KW CNC H Beam,Plate,Tubes Laser Cutting Machine
  • 20KW CNC H Beam,Plate,Tubes Laser Cutting Machine
Lugar de origen Porcelana
Nombre de la marca Perfect
Número de modelo OLT-3018 20KW
Cantidad de orden mínima 1
Detalles de empaquetado Estándar
Tiempo de entrega 10 días
Condiciones de pago LC, T/T
Capacidad de la fuente 20/month

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Garantía 1 año Método de enfriamiento Enfriamiento de agua
Sistema de control CNC Velocidad móvil máxima 10 m/min.
Fuente de alimentación 380V 50Hz Compatibilidad de material Metal, madera, plástico
Espesor de corte Hasta 30 mm Software CAD/CAM
Área de corte 3000 mm x 20000 mm Método de corte Lasers/plasma
Deja un mensaje
Descripción de producto

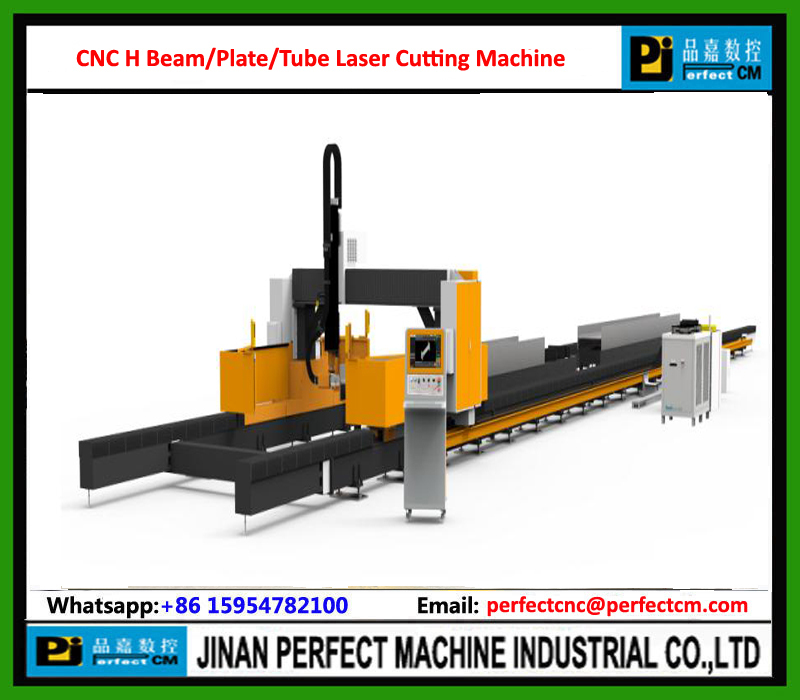

20KW CNC H Beam,Plate,Tubes Laser Cutting Machine

Model OLT-3018 20KW

  1. Features and applications

Perfect-CNC Profile And Plate Combo Laser Cutting Machine is a high-tech product integrating laser cutting, precision machinery, intelligent detection, three-dimensional 6-axis CNC technology. The current steel structure processing field is still using the traditional manual, semi-automatic way of material. There is an urgent need for a high-efficiency and high-quality processing methods to improve efficiency and quality, reduce labor costs. Perfect laser is committed to provide high efficiency, high precision, high cost-effective automated processing equipment.



       2. Details Technical Specifications:



Serial No. Properties Technical parameters
1 H-beam Cutting range(L-type) Width 150mm≤h≤1200mm
Height 150mm≤b≤500mm
Length l≤12000mm
2 X axis 3000mm
3 Y axis 20000mm
4 Z axis 1020mm
5 X/Y axis positioning accuracy ±0.15mm
6 X/Y axis repeat accuracy ±0.05mm
7 X/Y/Z maximum speed 15m/min
8 A axis swing angle ±90°
9 C axis swing angle ±45°
10 U axis swing angle ±40mm
11 Maximum acceleration 0.5G
12 Number of phases 3
13 Power supply specifications 380V/50HZ
14 Total power supply protection class IP54
15 Laser power 20KW
16 Plate cutting(support bevel) 6000*3000mm

Note: The accuracy of a machined part depends on factors such as the type of material, pre-treatment, plate size, and type of work piece.
